Thule ReVert is more than a bike rack – it's the ultimate solution for transporting a full fleet of bikes together with your crew. With unparalleled capacity, ease of use, and robust security, it’s the reliable choice for core MTB riders and active MTB families. More time on the trail, and less on the setup!
#
Gear up together, hit the trail faster
Capacity for more

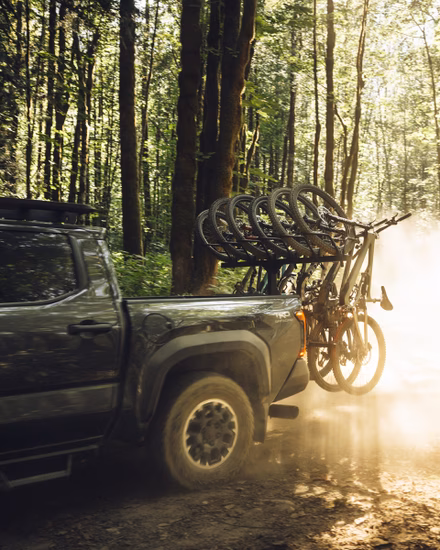

The Thule ReVert bike rack transforms your vehicle into a high-capacity bike transporter. By loading bikes vertically, you maximize the number of bikes per journey while making the most efficient use of space around your vehicle. Every trip can easily become a group adventure.
Dual TiltAssist damper
The dual TiltAssist damper makes handling practically effortless. Simply push down the tilt release lever and tilt the rack down, roll up the bikes, give the tilt release lever a second pushdown, and raise the rack back up. The damper makes it a breeze as it gives you weight assistance in both directions with bikes loaded.
Ease of use
Engineered for convenience, the rack's tilt-down feature grants easy trunk access. Loading is quick and straightforward – simply roll your bikes in and out of the wheel baskets with minimal lifting efforts. Save all your energy for the upcoming ride!
Durability
Built with solid steel construction, it withstands the rigors of the road and is backed by rigorous testing standards at the Thule Test Center. Its elastic wheel straps and tool-free AutoAttach system mean your bikes are secured fast and you’re off to the trails in no time.
Dual direction tilt assist damper with memory function
The hydraulic damper provides weight assistance, making it easier to both lower and raise the rack with bikes fully loaded. Accessible tilt release handle for tilting the rack. The rack locks itself when tilted down in the load position. By gently pushing the handle down, the memory function activates which allows the user to let go of the handle and use both their hands to push the rack back up again
Easy trunk access
With bikes mounted, the trunk is accessible with a push down handle tilt
Compatible with the full fleet of bikes

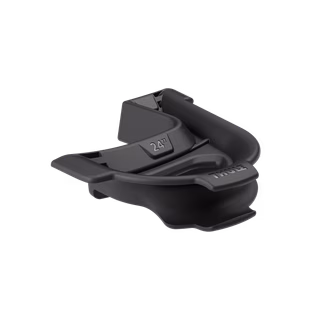

20-29" wheels (20-24" accessory insert sold separately) with tires wide as 5" (3-5" accessory wheel basket sold separately)
High load capacity
The high load capacity of 55lbs (25kg) per bike and a max carrier load capacity of 250lbs (113kg) makes it possible to transport the heaviest bikes and lighter E-bikes
Convenient roll in and roll out bike loading
Quick and easy bike loading and unloading of bikes with limited to no lifting required. Wheel baskets designed to easily roll in and roll out the bikes while the rack is tilted down
No frame or fork contact
Rubber contact only to prevent any frame or fork contact
Generous spacing between bikes
Generous 11" (279mm) distance between bikes reduces risk of bike-to-bike contact
Made for long wheelbases
Extra-long wheel holders enable easy transport of bikes with long wheelbases, up to 53" (1350mm)
Easy fastening of tires
Resilient and durable wheel straps for quick and secure fastening of tires up to 3"
Locks for safety
Integrated hitch bike lock to secure your rack to your car
Great accessories
Wide range of innovative accessories available (accessories sold separately)
Quick mounting
Hit the trails faster with the Tool-free AutoAttach system with easy grip lever that allows for simple and secure mounting and removal of the rack
Off-road use
This product is intended for use on public and private roads, including off-roads such as gravel roads, forest service roads and access roads. Refer to definition in the safety instruction
RV Travel
This product is approved for motorized RV travel at reduced load capacity. It is essential to follow the 40% load reduction guidelines provided in the fitting instruction for safe and optimal performance
Max number of bikes
6
Load capacity
250 lb
Max bike weight
55 lb
Dimensions (LxWxH)
30 x 67 x 58 in
Weight
87.4 lb
Max tire width
3" (up to 5" with Thule Revert fatbike wheel basket)
Max wheel size (diameter)
29" (20-24" with Thule ReVert 20/24" wheel adapter)
Max wheelbase
1350 mm
Distance between bikes
11 in
Tilt function (with bikes)
Fits 1.25" receivers
Fits 2" receivers
One Key System compatible
Receiver lock included
Off-road use
Yes, refer to definition in the safety instruction
RV Travel
Yes, refer to definition in the fitting instruction
Dual direction TiltAssist damper with memory function allows for easy trunk access and convenient roll in and roll out bike loading that minimizes any lifting efforts so that you can focus all your energy on the trail instead.
Room for the whole crew
From kids' bikes to fat tires, the Thule ReVert adapts to fit a wide range of bikes. It's the one rack that meets all your cycling needs, no matter where your adventures lead.
Rugged longevity
Constructed for endurance, Thule ReVert is made to last. It's not just about getting to the destination – it's about savoring every journey, assured that your gear is in good hands.
Purpose-built accessories
A wide range of accessories take your riding experience to the next level.
Play video
Go vertical
Loading bikes vertically maximizes space and allows more bikes per journey, turning every trip into an easy group adventure.
It's supereasy to use - the damper on this thing makes it so simple that even young kids can make sure the bikes go up and down with ease.
At the Thule Test Center™ in Hillerstorp, Sweden, products go through extreme testing. Our bike racks are designed to carry your bikes and fit your car as safely and securely as possible. Below are just a few examples of the many tests conducted.
Used to evaluate the performance under conditions such as those that might be encountered during use on rough or uneven terrain.
Wear and tear simulations
Specialized tests that are used to evaluate the racks and carriers over time, to assess their durability and long-term performance as well as their ability to protect the bikes during transport.
Exposure tests
Used to evaluate the performance of the rack under conditions that might be encountered during use. We expose the bike racks to extreme heat and cold, as well as moisture, sunlight and chemicals.
